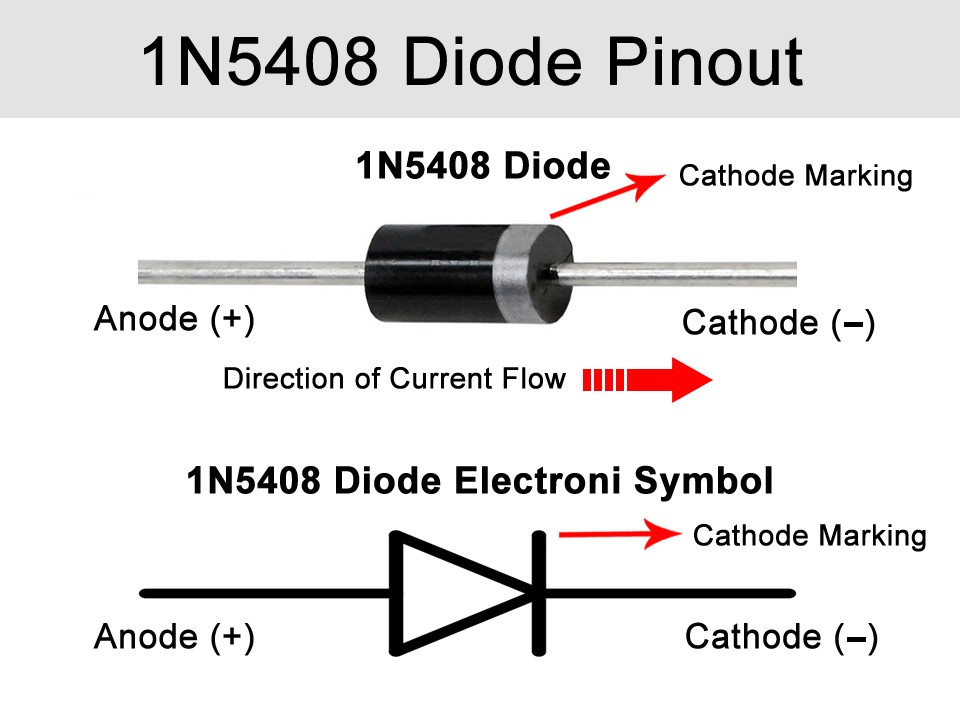

1N5408 - HORNBY ELECTRONIC CO., LTD General Purpose Plastic Rectifier FEATURES • Low forward voltage drop • Low leakage current • High forward surge capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 TYPICAL APPLICATIONS For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application. Note • These devices are not AEC-Q101 qualified. MECHANICAL DATA Case: DO-201AD, molded epoxy body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test Polarity: Color band denotes cathode end. FOR BEST QUOTE, CONTACT SURAJ ELECTRONICS, MUMBAI.
This is your website preview.
Currently it only shows your basic business info. Start adding relevant business details such as description, images and products or services to gain your customers attention by using Boost 360 android app / iOS App / web portal.
1N5408 - HORNBY ELECTRONIC CO., LTD General Purpo...
2021-09-09T11:32:38
1N5408 - HORNBY ELECTRONIC CO., LTD General Purpose Plastic Rectifier FEATURES • Low forward voltage drop • Low leakage current • High forward surge capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 TYPICAL APPLICATIONS For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application. Note • These devices are not AEC-Q101 qualified. MECHANICAL DATA Case: DO-201AD, molded epoxy body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test Polarity: Color band denotes cathode end. FOR BEST QUOTE, CONTACT SURAJ ELECTRONICS, MUMBAI.
2021-09-09T11:32:38
