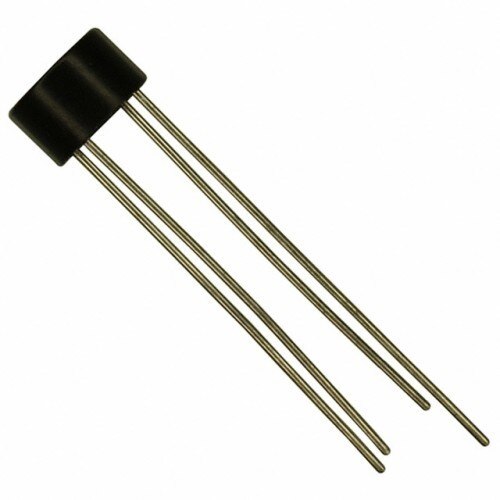

W06 Single Phase Silicon Bridge Rectifier Features of W06 Single Phase Silicon Bridge Rectifier Ideal for printed circuit board Surge overload rating 50 A peak High case dielectric strength High temperature soldering guaranteed 250oC/10sec/0.375"(9.5mm) lead length at 5 lbs tension Maximum DC Blocking Voltage VDC1000 V Maximum RMS Voltage VRMS700 V Mechanical Features of W06 Single Phase Silicon Bridge Rectifier Terminal Plated leads solderable per MIL-STD 202E, method 208C Case UL-94 Class V-O recognized flame retardant epoxy Polarity Polarity symbol marked on body Mounting position Any
