Description

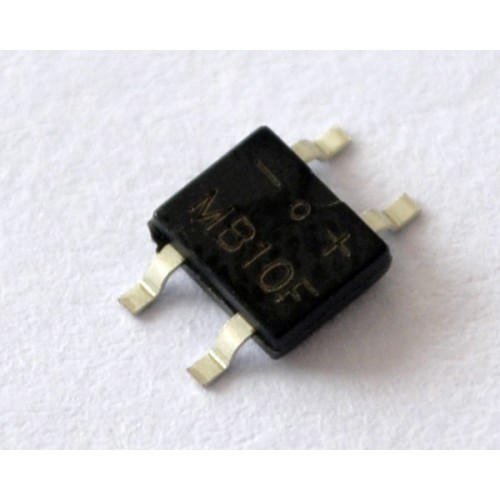

MB10F Bridge Rectifier MB10f is a surface Mount Glass passivatedbridge rectifierwith Maximum Peak reverse voltage of 1000 volts & average output current of 0.8 Ampere. Features of MB10F: Plastic material has U/L flammability classification 94V-O High surge overload rating 35A peak Saves space on printed circuit boards High temperature soldering guaranteed 260 Degree C/10sec/ at 5 lbs. (2.3kg) tension Terminals Plated leads solderable per MIL-STD-750, Method 2026 Case Molded plastic body over passivated junctions Polarity Polarity symbols marked on body Dimensions in inches and (millimeters) Mounting Position Any Package MBS
