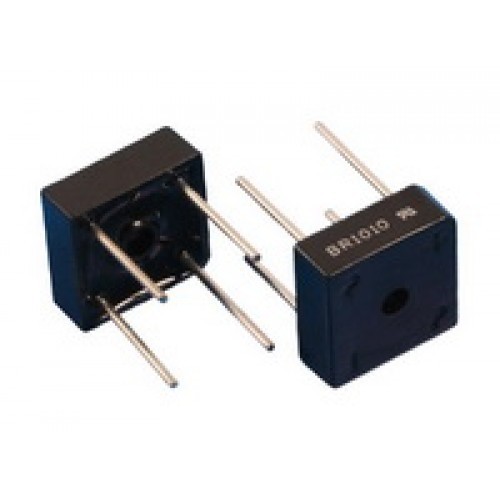

BR1010 Bridge Rectifier BR1010 Bridge RectifierBR1010 is Single Phase Full Wave Bridge Rectifier. The Voltage range ofBR1010is from 50V to 1000V up to 10Amp current. Features BR1010 Bridge Rectifier Peak Reverse Voltage (Vrrm) 1000V Max. RMS Bridge Voltage (Vrms) 700V Max. DC Blocking Voltage (Vdc) 1000V Av. Forward Rectified Current (Io) 10.0A Maximum Reverse Current (Ir) 5A Forward Volt Drop per Element (Vf) 1.1V Surge overload rating 200 amperes peak Low forward voltage drop Mechanical Data: Lead Mil-STD-202E method 208C guaranteed Mounting position Any Epoxy Device has UL flammability classification 94V-O
