Description

Product details

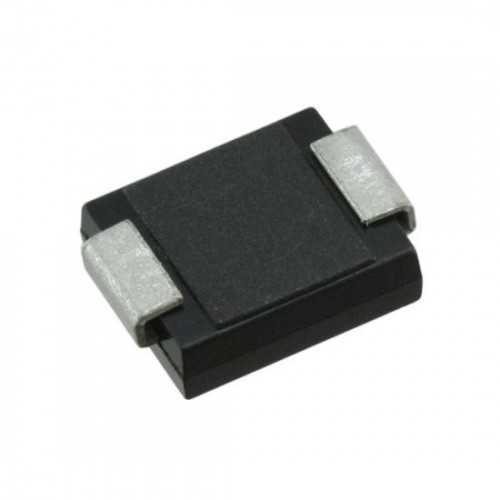

The SS34 is a Surface MountSchottky Barrier Rectifier. It is suitable for use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications. Features of SS34 Maximum repetitive peak reverse voltage, VRRM 40V; Maximum DC blocking voltage, VDC 40V; Maximum average forward rectified current at TL, IF(AV) 3.0A; Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load, IFSM 100A; Non-repetitive avalanche energy at TA= 25, IAS= 2.0A, L = 10mH ,EAS 20mJ; Voltage rate of change (rated VR), dv/dt 10 000V/s ; Low profile package; Ideal for automated placement; Guardring for over-voltage protection; Low power losses, high efficiency; Low forward voltage drop; High surge capability; Meets MSL level 1, per J-STD-020, LF maximum peak of 260 Solder dip 260, 40 s; Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
