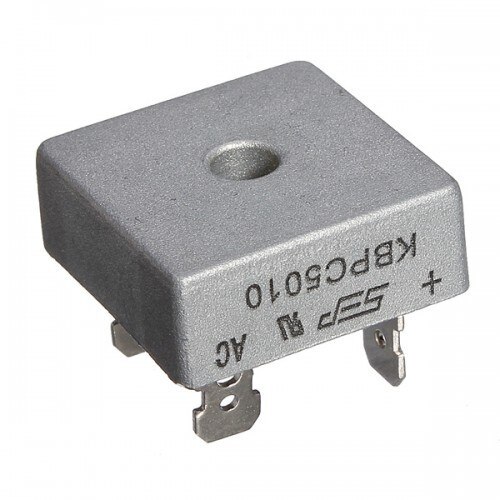

KBPC5010 Bridge Rectifier KBPC5010 Bridge RectifierKBPC-5010 is a 50 Ampere single phase Full wave Bridge rectifier module. Features of KBPC5010 Bridge Rectifier High case dielectric strength High surge current capability High reliability High efficiency Low reverse current Low forward voltage drop Pb / RoHS Free Maximum Average Forward Current Tc = 55 DegreeC I F(AV) 50 A Maximum Forward Voltage per Diode at IF=25 A VF 1.1 V Maximum DC Reverse Current Ta = 25 DegreeC I R 10 A Maximum Recurrent Peak Reverse Voltage VRRM 1000V Mechanical Feature of KBPC5010 Bridge Rectifier Case Metal Case Epoxy UL94V-0 rate flame retardant Terminals plated .25" (6.35 mm). Faston Polarity Polarity symbols marked on case Mounting position Bolt down on heat-sink with silicon thermal compound between bridge and mounting surface for maximum heat transfer efficiency.
