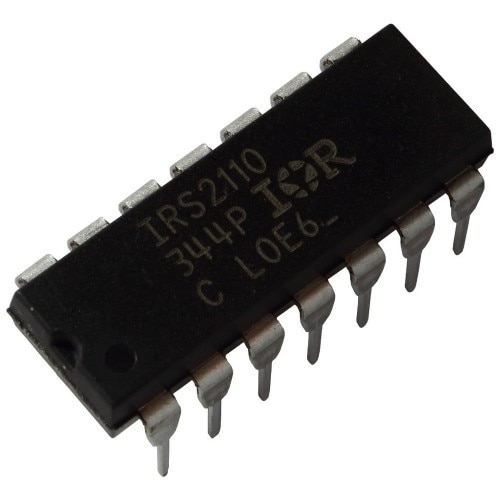

IRS2110 MOSFET and IGBT Driver ICIRS2110 is high voltage, high speedpower MOSFET and IGBT driverswith independent high-side and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive anN-channel power MOSFET or IGBTin the high-side configuration which operates up to 500 V or 600 V. Features of IRS2110 High and Low Side Driver IC: Floating channel designed for bootstrap operation Fully operational to +500 V or +600 V Tolerant to negative transient voltage, dV/dt immune Gate drive supply range from 10 V to 20 V Undervoltage lockout for both channels 3.3 V logic compatible Separate logic supply range from 3.3 V to 20 V Logic and power ground +- 5V offset CMOS Schmitt-triggered inputs with pull-down Cycle by cycle edge-triggered shutdown logic Matched propagation delay for both channels Outputs in phase with inputs RoHS compliant
