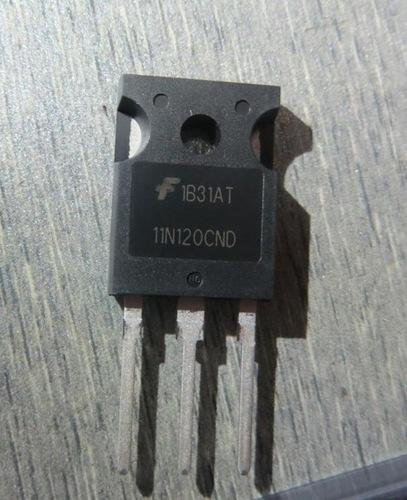

Leading Wholesale Trader of HGTG11N120CND ON SEMICONDUCTOR, IXGH32N170 IXYS IGBT, IXBH16N170A IXYS, IRG4PC40UDPBF, IXGX120N60A3 IXYS and IXXH100N60B3 IXYS IGBT from Mumbai. ON SEMICONDUCTOR HGTG11N120CND Series 1200 V 43 A Flange Mount NPT N-Channel IGBT-TO-247 Mfr Part#: HGTG11N120CND Mounting Method: Flange Mount Package Style: TO-247-3 Packaging: TUBE Std Packaging Qty: 450 The HGTG11N120CND is a N on- Punch Through (NPT) IGBT design. This is a new member of the MOS gated high voltage switching IGBT family. IGBTs combine the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The IGBT used is the development type TA49291. The Diode used is the development type TA49189. The IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors. Features: 43 A, 1200 V, T C = 25 oC 1200 V Switching SOA Capability Typical Fall Time. . . . . . . . . . . . . . . . .340 ns at T J = 150 o CShort Circuit Rating Low Conduction Loss Thermal Impedance SPICE Model
