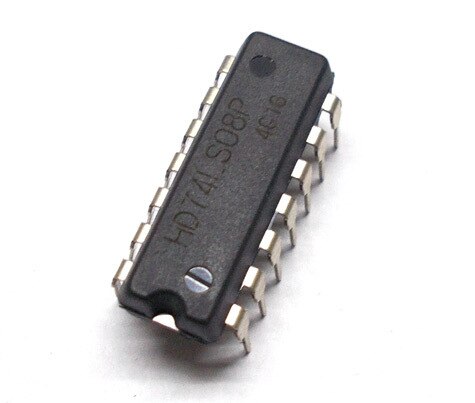

74LS08 Quad 2-Input & Gate Offering you a complete choice of products which include 74LS08 Quad 2-Input & Gate. 74LS08 Quad 2-Input AND Gate The 74ls08 quad 2 input and gates contains four independent gates each of which performs the logic AND function. 74ls08 quad 2 input and gate IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. The 74ls08 quad 2 input and gates circuit is designed such that the AND operation of the input pins 1 &2 , 4&5, 9&10, 12,13 are produced on the pin 3 , 6, 8 & 11 respectively. Operating supply voltages to the IC can vary between 4.75V to 5V and to a maximum of 5.25V and the input logic levels to the device in '0'(LOW) state is max. 0.8V and for '1'(HIGH) state is min 2V. Features of 74LS08 Quad 2-Input AND Gate Operating Voltage Range 4.75V to 5V up to a maximum of5.25V. Operating Temperature range 0 DegreeC to +70 DegreeC. VH (Output High) 2.7V to 3.4V. VL (Output Low) 0.36V to 0.5V. Power Consumption 4.8mA to 8.8mA. Operating Speed (Mhz)125 - 250.
