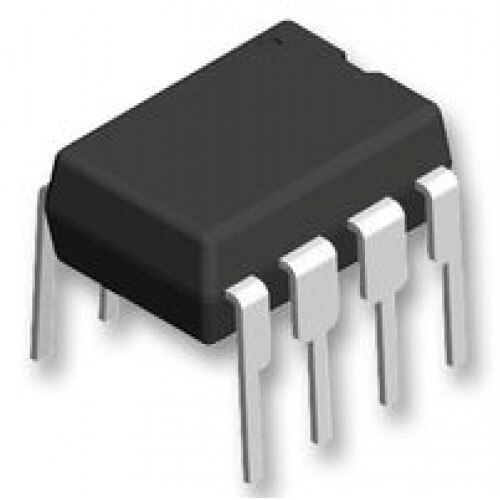

The6N137is single channel 10 MBd opto-couplers utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector. The detector has an open drain NMOS-transistor output, providing less leakage compared to an open collector Schottky clamped transistor output. For the single channel type, an enable function on pin 7 allows the detector to be strobed. The use of a 0.1 F bypass capacitor connected between pin 5 and 8 is recommended. Features of 6N137 High-Speed Opto-coupler: Choice of CMR performance of 15 kV/s, 5 kV/s, and 1000 V/s High speed 10 MBd typical +5 V CMOS compatibility Pure tin leads Guaranteed AC and DC performance over Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) requirements
